Building and Flying Related Boards › miniMax, Hi-Max, and AirBike General Discussions
1600 vw engine for vmax
11 posts
(unknown)January 22, 2019, 2:44pm
O.k. I have a few questions about the 1600 engine, Since this will be an airplane mount then of course the flywheel isn't going to be in use( unless you mount a starter) there for how to you adjust crankshaft end play? how does this work I know the Glen nut has a torque specification but what about end play on the crank, does this effect internals or like the flywheel and clutch assembly in car applications?
mullacharjakJanuary 22, 2019, 6:58pm
When I experimented with a VW 1600 I got lucky to find a scraped Limbach SL 1700 from an air force glider.I removed the flange at the back of
the crankshaft and installed it on my engine.
This thing looks exactly like the centre of the flywheel.

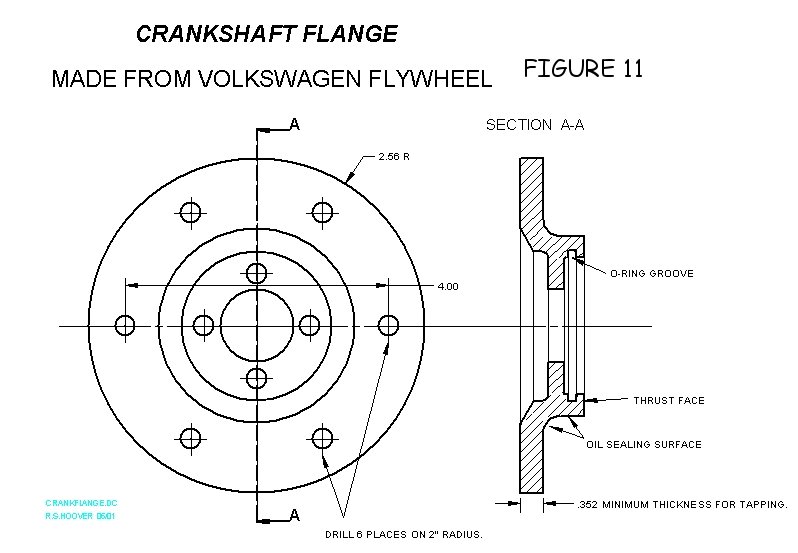

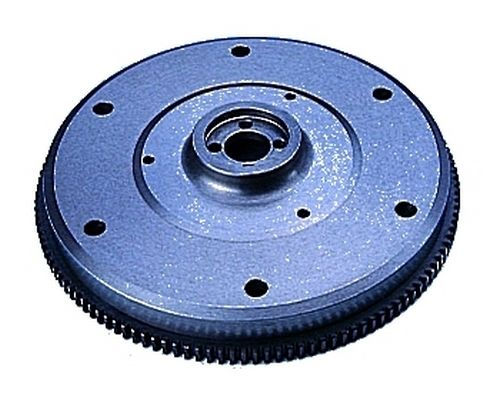

The easy thing to do would be to cut it out of a vw flywheel and use the shims for end play adjustment.
See attachment.
KK
(unknown)January 22, 2019, 7:23pm
that may work, it would allow for the flywheel oil seal also and provide a measuring reference for end play adjustments.
PUFFJanuary 23, 2019, 2:25pm
I've done that. Cut out the center of the VW flywheel, machined it down and just simply bolted it back on. Serious Weight savings.
Bob HoskinsJanuary 23, 2019, 2:36pm
Hi
There are shims used by VW to set crank endplay. They are readily available.
Bob
Fly safe and have fun.
Max SSDRJanuary 23, 2019, 4:16pm

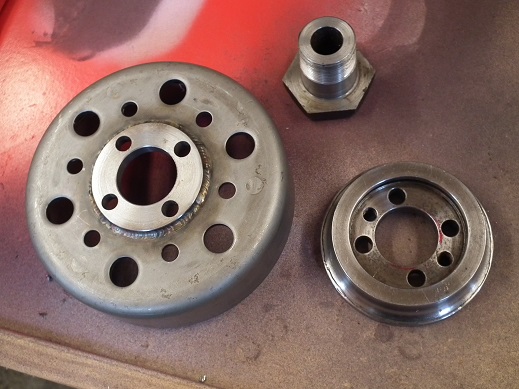

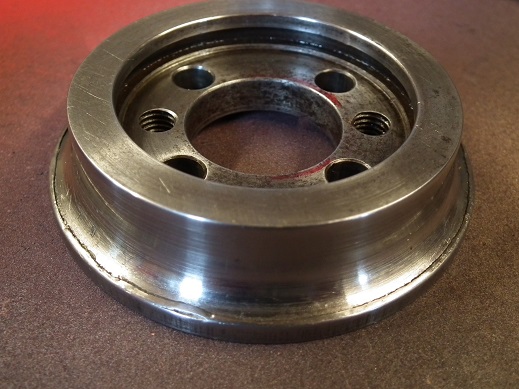

I posted these once before. This was for an 1834 with a Honda CBR Alternator and twin electronic ignition.
mullacharjakJanuary 23, 2019, 7:06pm

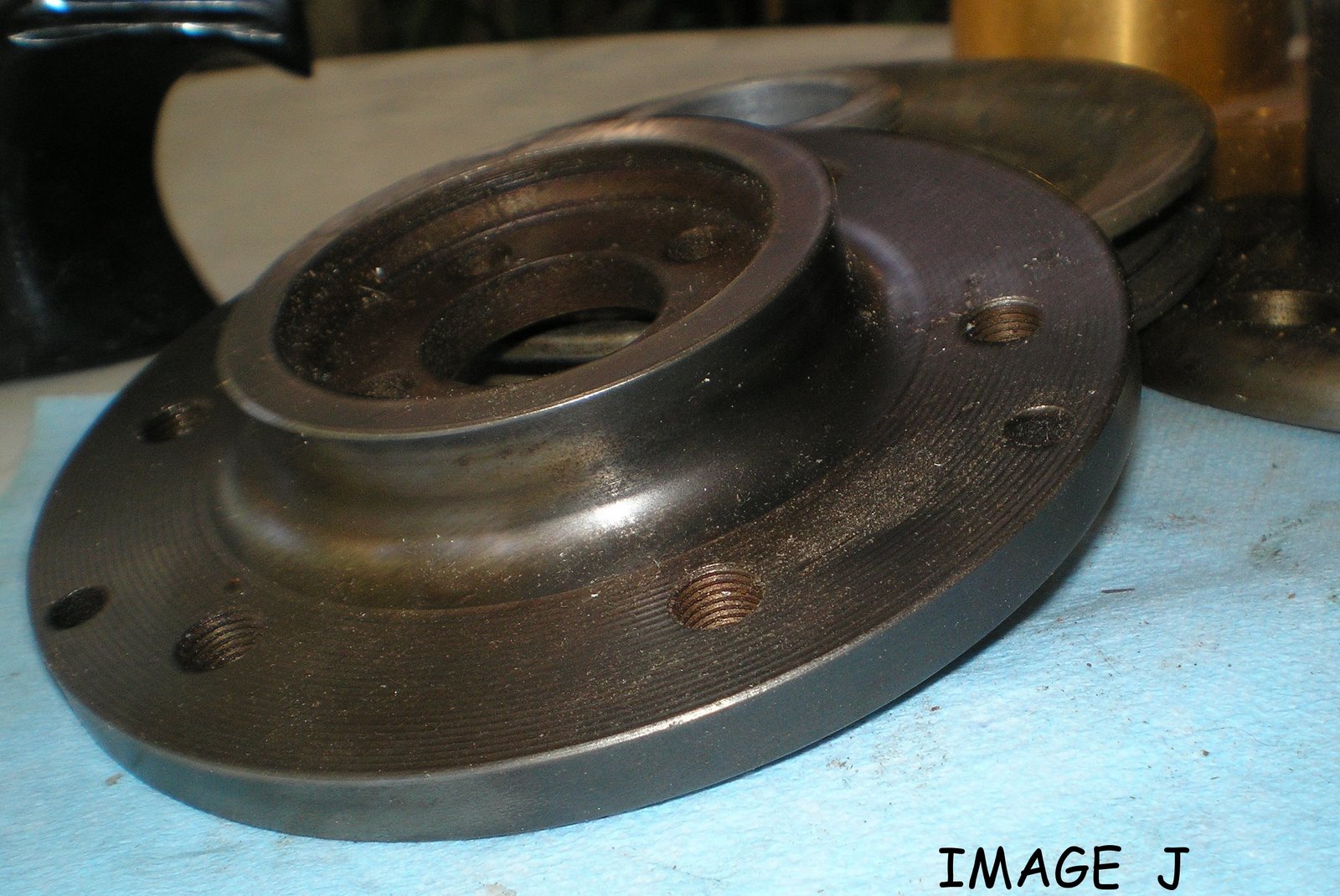

Some images from the late bob hoovers blog.
KK
PUFFJanuary 24, 2019, 12:43pm
Bob Hoover's looks like it could have a prop bolted to it as well.
(unknown)January 24, 2019, 3:07pm
thank you gentleman for the feedback. good info...
PUFFJanuary 25, 2019, 5:13pm
Quoted from PUFF
Bob Hoover's looks like it could have a prop bolted to it as well.
i dont think you would clear the exhaust with a prop bolted straight to the flange, hence the spacer.
PUFFJanuary 28, 2019, 1:03pm
Understood.
