Cutting 45 deg bevel

Building and Flying Related Boards › miniMax, Hi-Max, and AirBike General Discussions

7 posts

MickvdsFebruary 9, 2019, 12:46pm

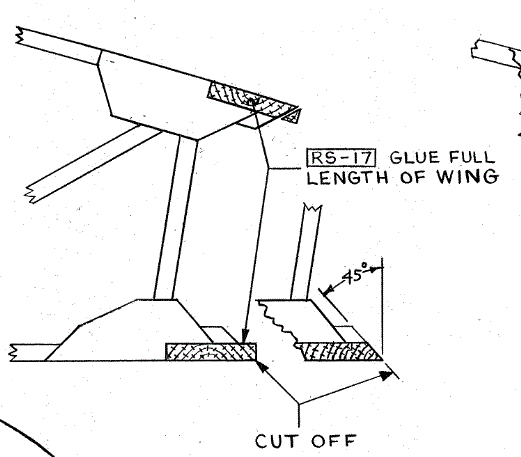

I need to cut the 45 deg bevel as per attached instruction but am after some advise on how others have done it?

The stringers are glued in place already.

Thanks, Mick

Dick RakeFebruary 9, 2019, 6:56pm

Mick,
I built my wings 25 years ago so I don't remember exactly how I did mine, but if I were to do after the RS-17 was glued in place like yours I would use a Master Airscrew Razor plane. I've used these on a lot of projects over the years and it should work well on RS-17. Its small, easy to handle and the blades are very sharp. You might find this plane at a local hobby shop or you could them from hobby King. Be sure to get some extra blades.
Dick

https://hobbyking.com/en_us/ma.....BwE&gclsrc=aw.ds

tdweideFebruary 9, 2019, 7:08pm

oscillating multi tool? been finding it handy

bigbrixx1February 9, 2019, 8:28pm

Table saw before gluing on for me

V-max. Finished. Now in phase one flight

tomshepFebruary 9, 2019, 8:39pm

Yep. That's the one.

beragoobruceFebruary 9, 2019, 9:06pm

Record #4 plane for me

MickvdsFebruary 9, 2019, 11:43pm

Thanks everyone.

One of my biggest concerns is ruining the work done so far by using the wrong tool for the job. I will take it slow and steady and plane it down.

Cheers, Mick
