Building and Flying Related Boards › miniMax, Hi-Max, and AirBike General Discussions
JGlassFNPOctober 7, 2019, 5:59pm
Hey guys how much travel do you have on your flex cables for the aileron controls? Also what length are the cables and diameter? I know Team sells them but they are a dime a dozen online for 25 bucks and they look just like the ones at Team and (over 100 bucks each from team) .And this plane has broke my piggy bank ...Thanks. J
beragoobruceOctober 7, 2019, 9:09pm
You might want to think about making a pushrod system for the elevator. It is not that difficult, and both lower cost & safer than a cheap push-pull cable.
Bruce
JGlassFNPOctober 8, 2019, 12:35pm
I did for rudder but teleflex cables for ailerons
JGlassFNPOctober 8, 2019, 12:45pm

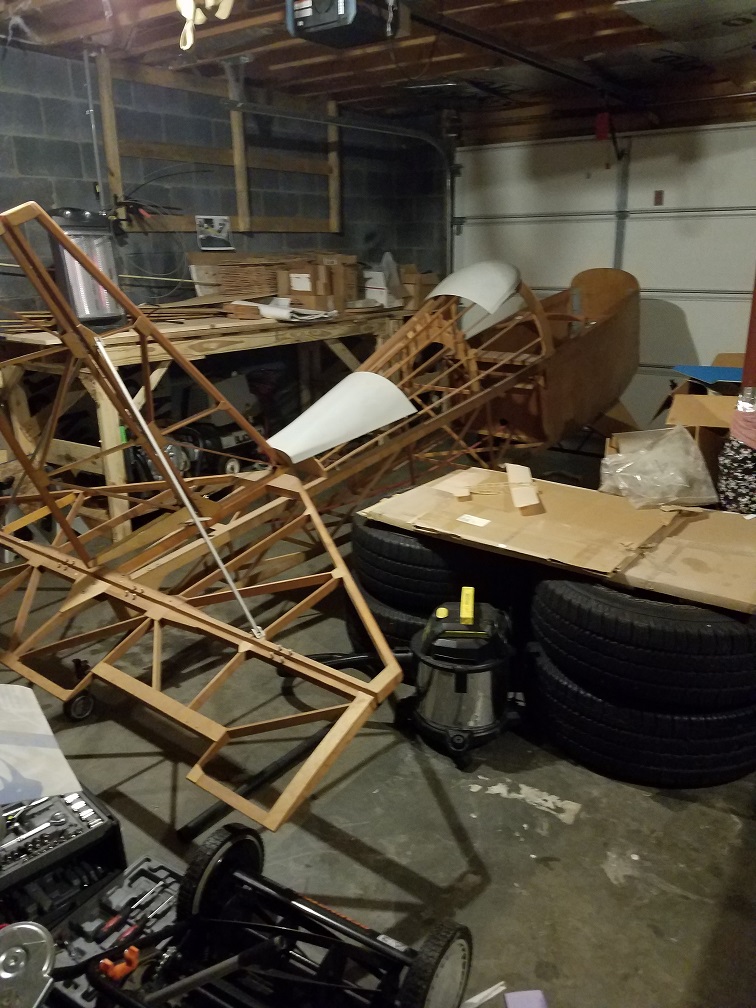

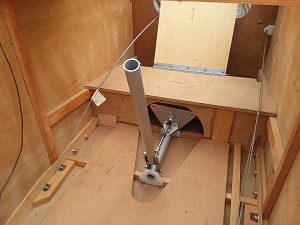

You may be able to see it in this pic.
JGlassFNPOctober 8, 2019, 12:51pm
I meant I used pushrod for elevator and cabled the rudder, and will use teleflex push pull cables for ailerons.
mullacharjakOctober 8, 2019, 2:29pm
JGlassFNP
I downloaded this information from this or the old site Long ago.I dont understand it but may be of some useto you.
Wescon controls Part# 3203bb5-048b aieleron. (i think this one looks a bit thin)
Part no 4602bb5-123b Elevator
The stress analysis report for the 1100 says the aieleron push rod is rated at 80 pounds compression/100llb tension.You can look it up from the wescon website.
I hope it is lower in cost.
JGlassFNPOctober 8, 2019, 8:31pm
Thank you much, I will see their site.
