wirsigMay 9, 2020, 1:37am
I’m looking for a wiring diagram for the CDI on a Zenoah G50. Any help will be greatly appreciated!
Building and Flying Related Boards › miniMax, Hi-Max, and AirBike General Discussions
Zenoah G50 CDI
8 posts
TreeTopsTomMay 10, 2020, 2:37am
I'm certain Tennessee Propeller could help you out with that. They still sell (some) parts & are real accommodating to folks that call in for help.
OPPS!!!! Just checked their site & it seems they are closed as of 12-29-2019.
That's sad to hear. But it does sound like they (might) be planning a re-opening. Seems a little early to have been a closing due to Kungflu though. Retirement? Selling? Don't know.
I don't know if I still have the owners manual that came with the engine or not but if I do I can see if there are any details about CDI wiring. IIRC there was information about Ohms values... to determine if it's good or bad. Not sure just what details of the wiring you are looking for.
OPPS!!!! Just checked their site & it seems they are closed as of 12-29-2019.
That's sad to hear. But it does sound like they (might) be planning a re-opening. Seems a little early to have been a closing due to Kungflu though. Retirement? Selling? Don't know.
I don't know if I still have the owners manual that came with the engine or not but if I do I can see if there are any details about CDI wiring. IIRC there was information about Ohms values... to determine if it's good or bad. Not sure just what details of the wiring you are looking for.
Greg DoeMay 10, 2020, 3:56am
Tennessee Propeller's closing has nothing to do with the Corona virus. Steve Breece told me last year the business was for sale. I don't know if someone bought it, or he just shut it down? My suggestion would to check with Steve Beatty at Air Screw Performance. He has a CDI for the Rotax engines, but I don't know if he has something for the Zenoah. Good luck.
wirsigMay 10, 2020, 1:18pm
[url] https://drive.google.com/file/d/1nOxaigGmKBklWrC0ODcSZd9vEzG53UGN/view?usp=drivesdk[/url]
Thanks guys, I'll try Tennessee’s number next week. If anyone else has a Zenoah, The attached pic shows what I'm after. I've got the left 3 wires hooked Up, the 3 remaining on the right are what I need help with. A black and a brown in a sheath and a brown by itself. This is a rebuild of a basket case Airbike so I didn't have any reference to what these should be connected to.
Thanks guys, I'll try Tennessee’s number next week. If anyone else has a Zenoah, The attached pic shows what I'm after. I've got the left 3 wires hooked Up, the 3 remaining on the right are what I need help with. A black and a brown in a sheath and a brown by itself. This is a rebuild of a basket case Airbike so I didn't have any reference to what these should be connected to.
wirsigMay 15, 2020, 3:51pm
I tried calling TN Propellers but the number's out of service. I've also posted the same question over on the EAA forum. Again, if anyone has a G-50 and knows what the 3 wires on the right coming out of the ignition box hook to I'd really appreciate the help.
PUFFMay 19, 2020, 11:24am
you try searching the forum? this may have already been discussed. There used to be videos of a Zenoah Hi-max on the forum back in the day, so someone here may still have one.
ScottLuckmanMay 26, 2020, 10:05pm

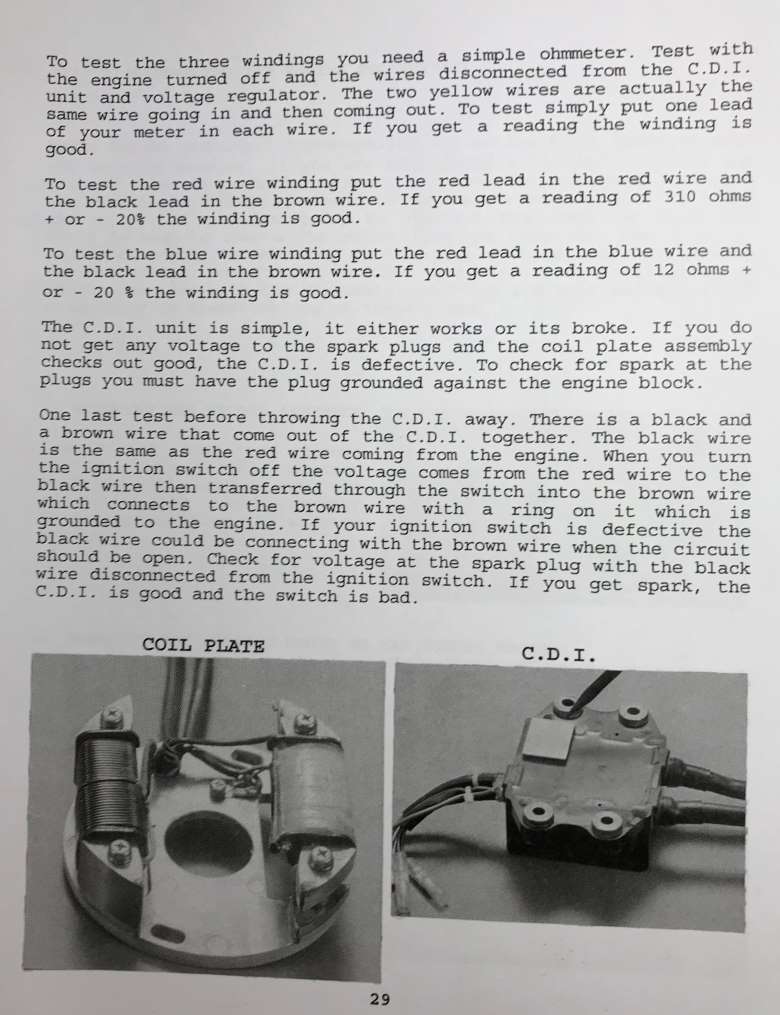

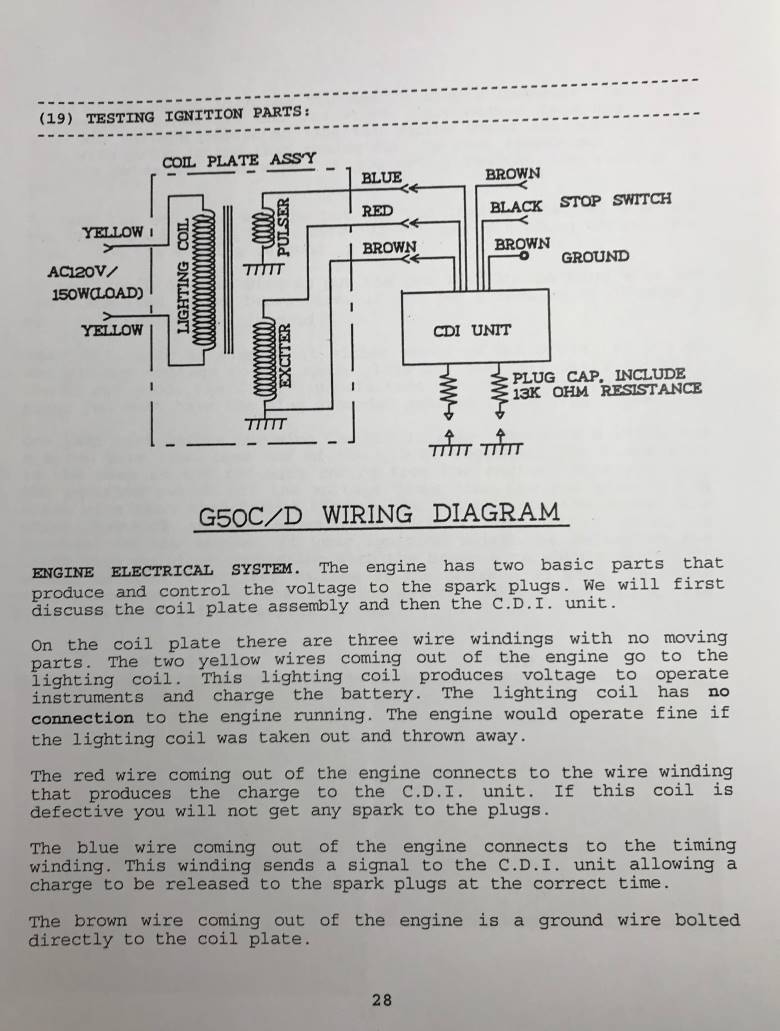

This should help! Last paragraph on Pg.29 explains it in a round about way! LOL It's the kill switch wires, when open the engine runs,when closed(connected) the engine does not. Page 28 gives the values for the coils on the coil plate of the engine. Let me know if you have any other questions, I live in the ATLanta area and am an Avionics Tech at Delta Airlines and also A&P.
wirsigMay 27, 2020, 3:35pm
Exactly what I needed, thank you Scott!
