Aileron Hinge Hole
4 posts
PoconoJohnJune 7, 2022, 1:57am
Search did not help. The rib template shows a 1/4" hole in the rear (in forward half of a vertical stick) for aileron hinge. That makes it seem every rib gets that hole drilled. I think the hole is needed only in the tip, root and #5 ribs. I'm building the 1650 EROS. Am I right?

Thanks!

John C
mullacharjakJune 7, 2022, 1:34pm
The hole is somewhere in there but i missed to place it.There are only 3 hinges so holes in three ribs is correct.

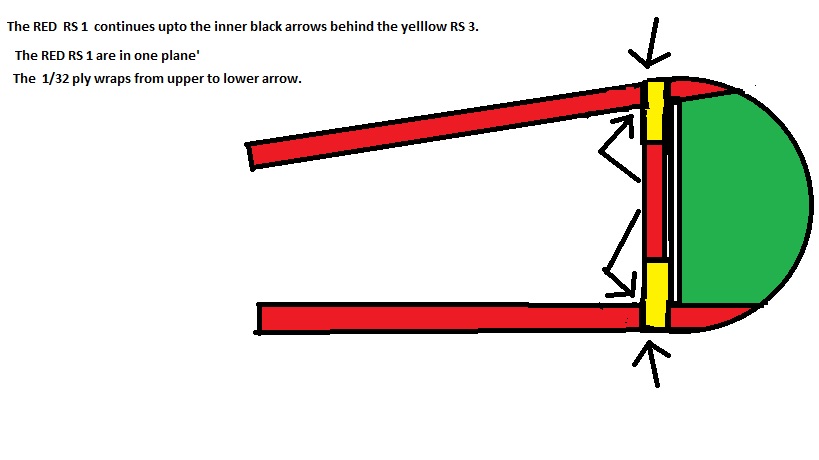

attachment
flydogJune 7, 2022, 9:39pm
Ditto. Correct.
PoconoJohnJune 7, 2022, 9:49pm
Thank you!

John C
